The Boy • MSDPRO/CCT Integrated Flood & Wall Wash
The Boy • MSDPRO/CCT Integrated Flood & Wall Wash
MSDPRO Flood / Wall Wash

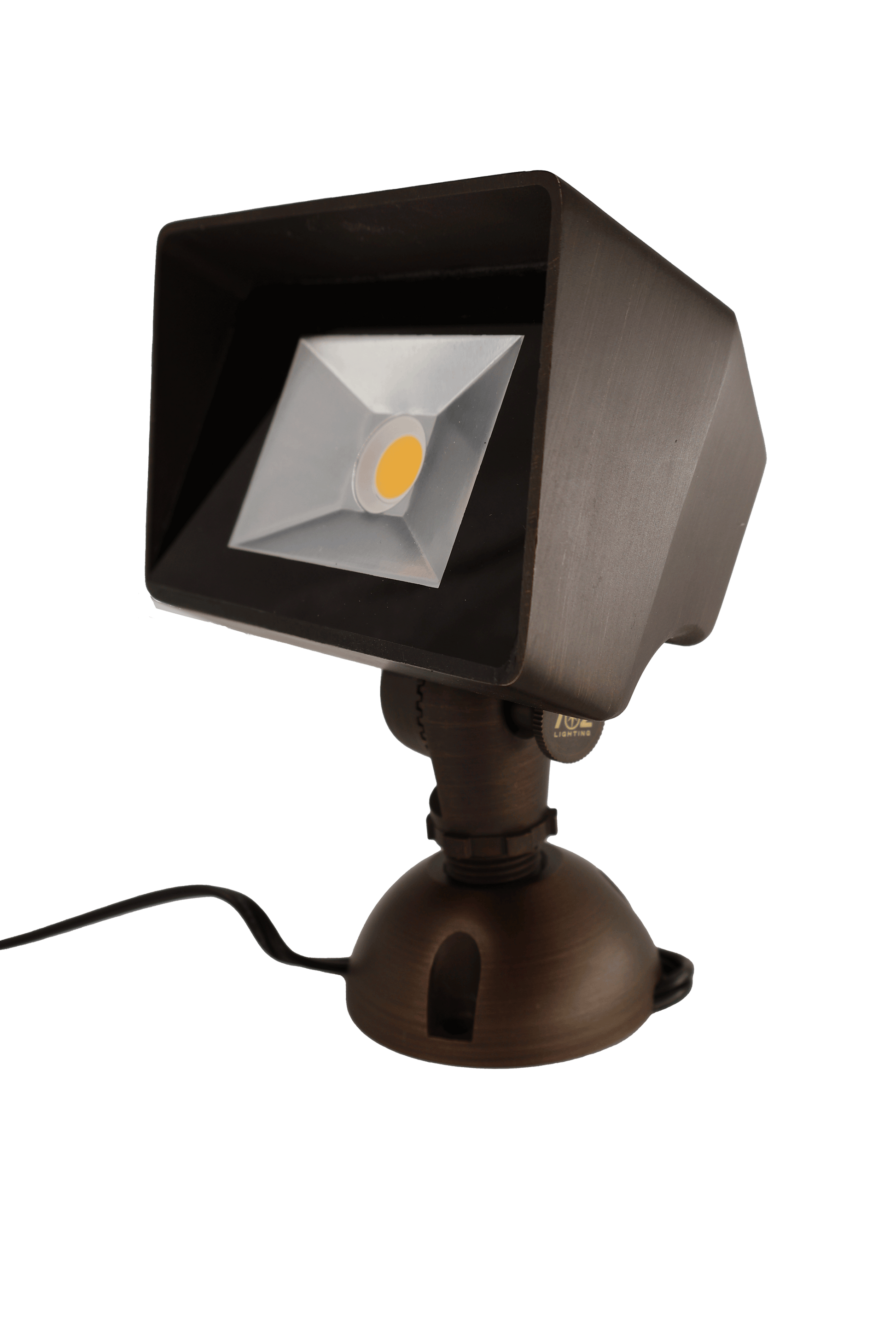

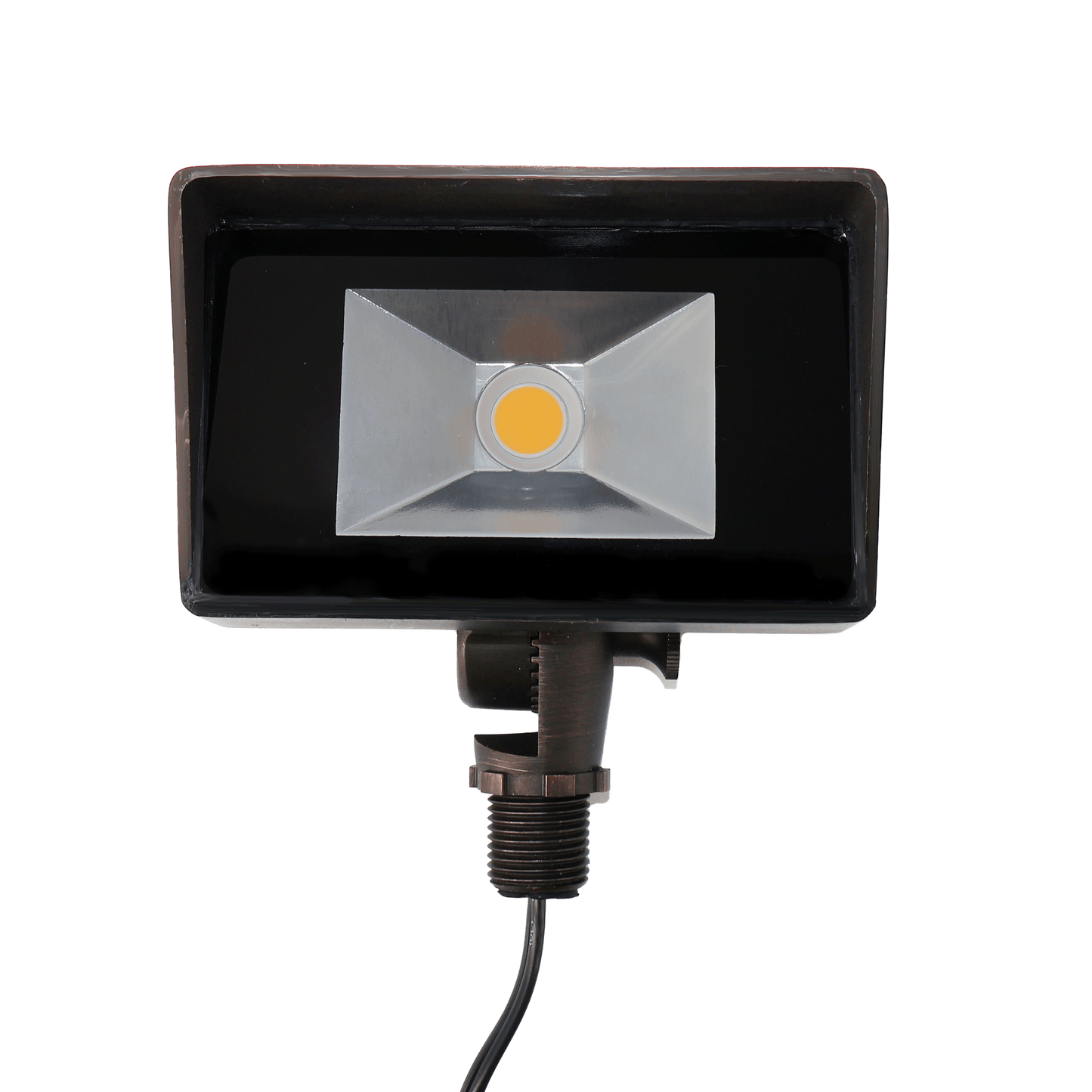

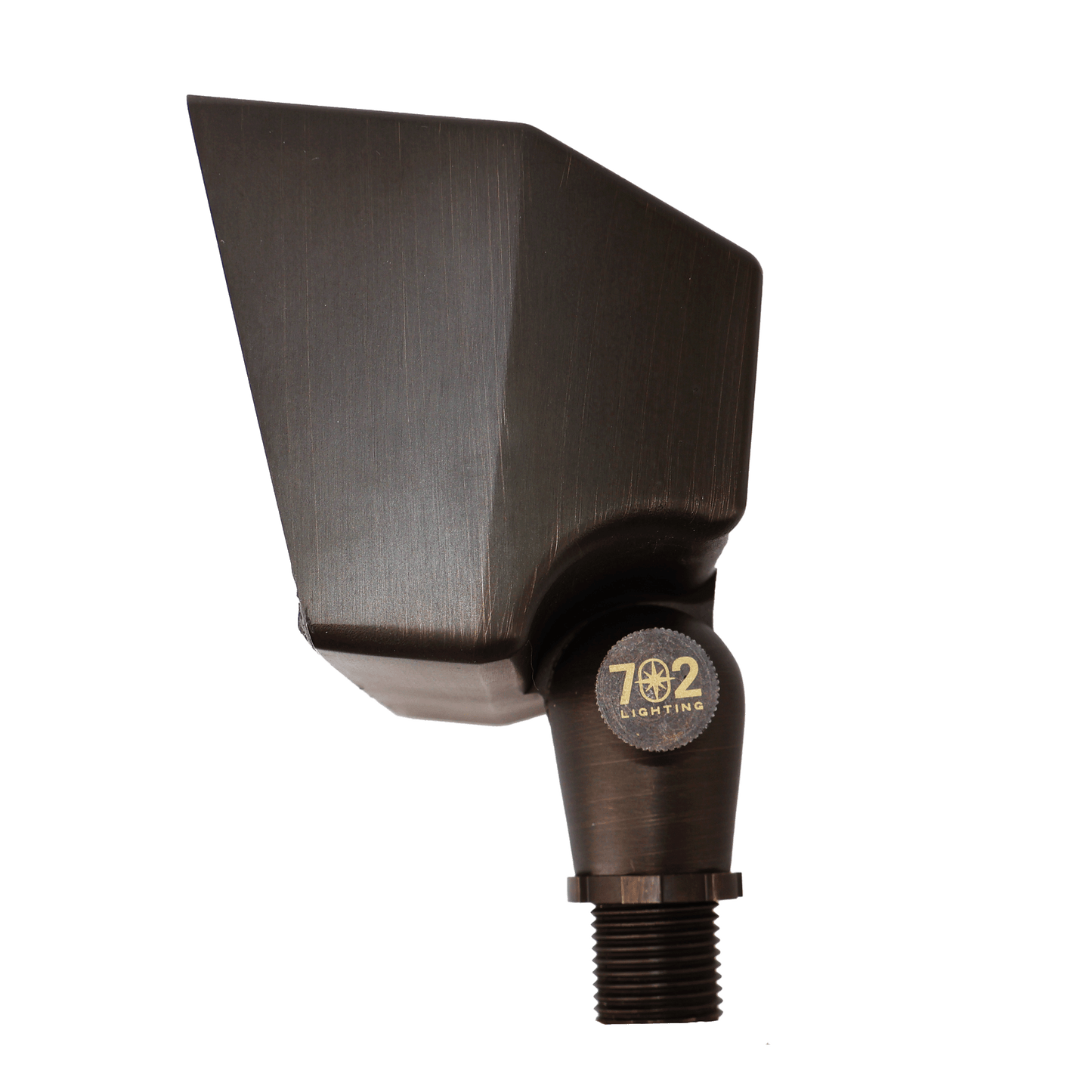

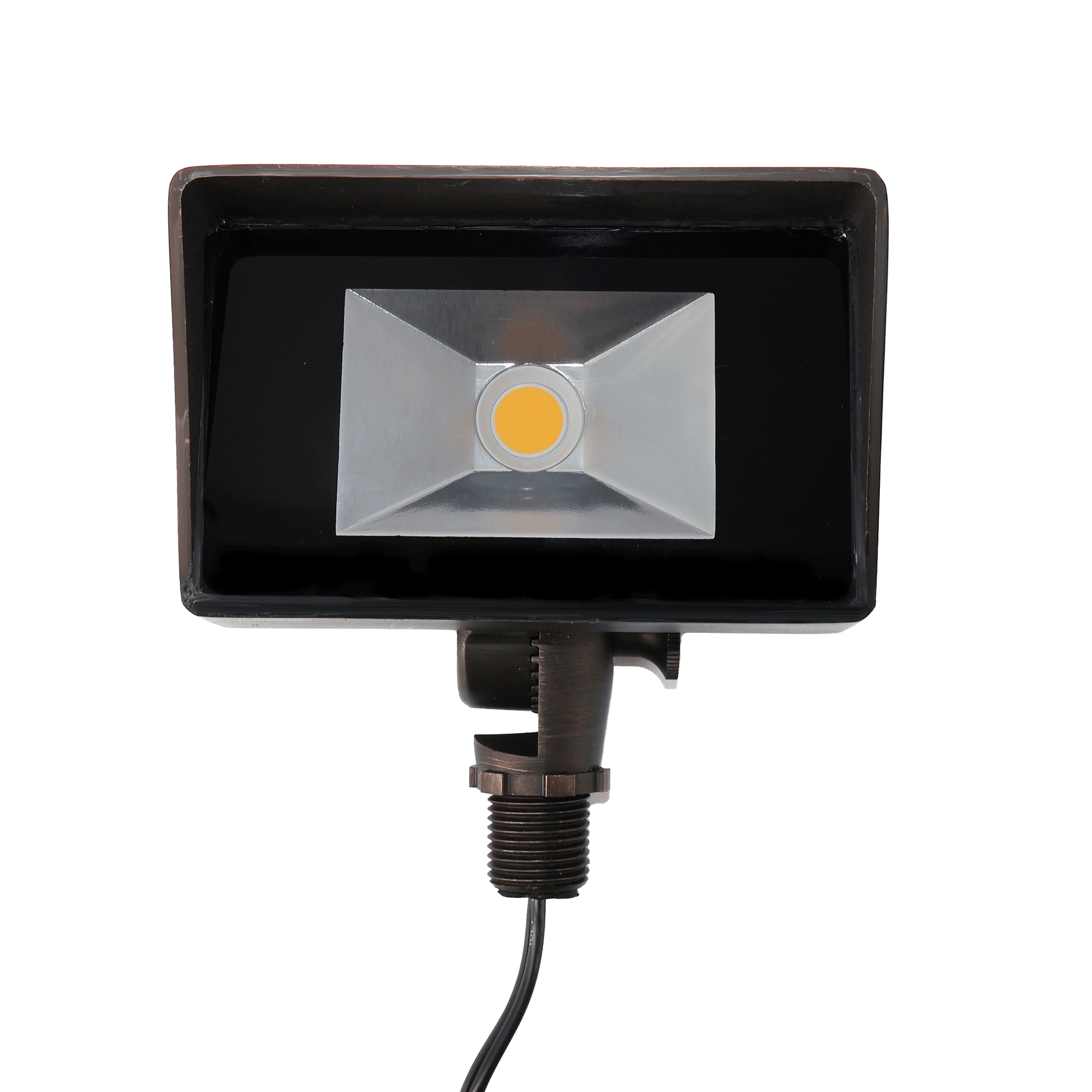

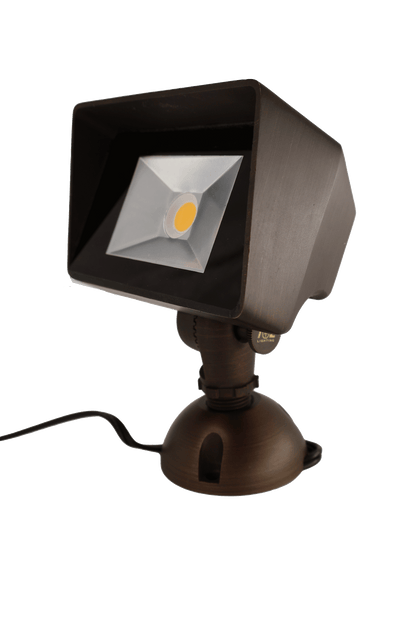

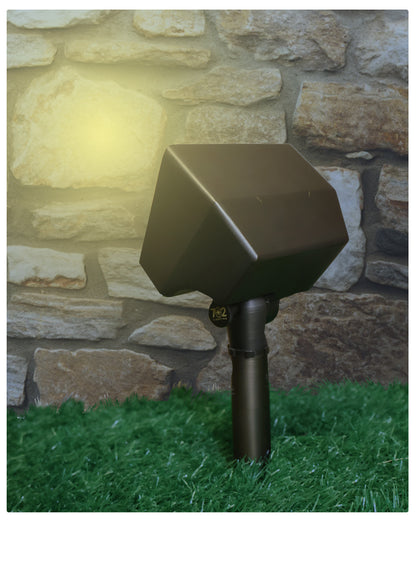

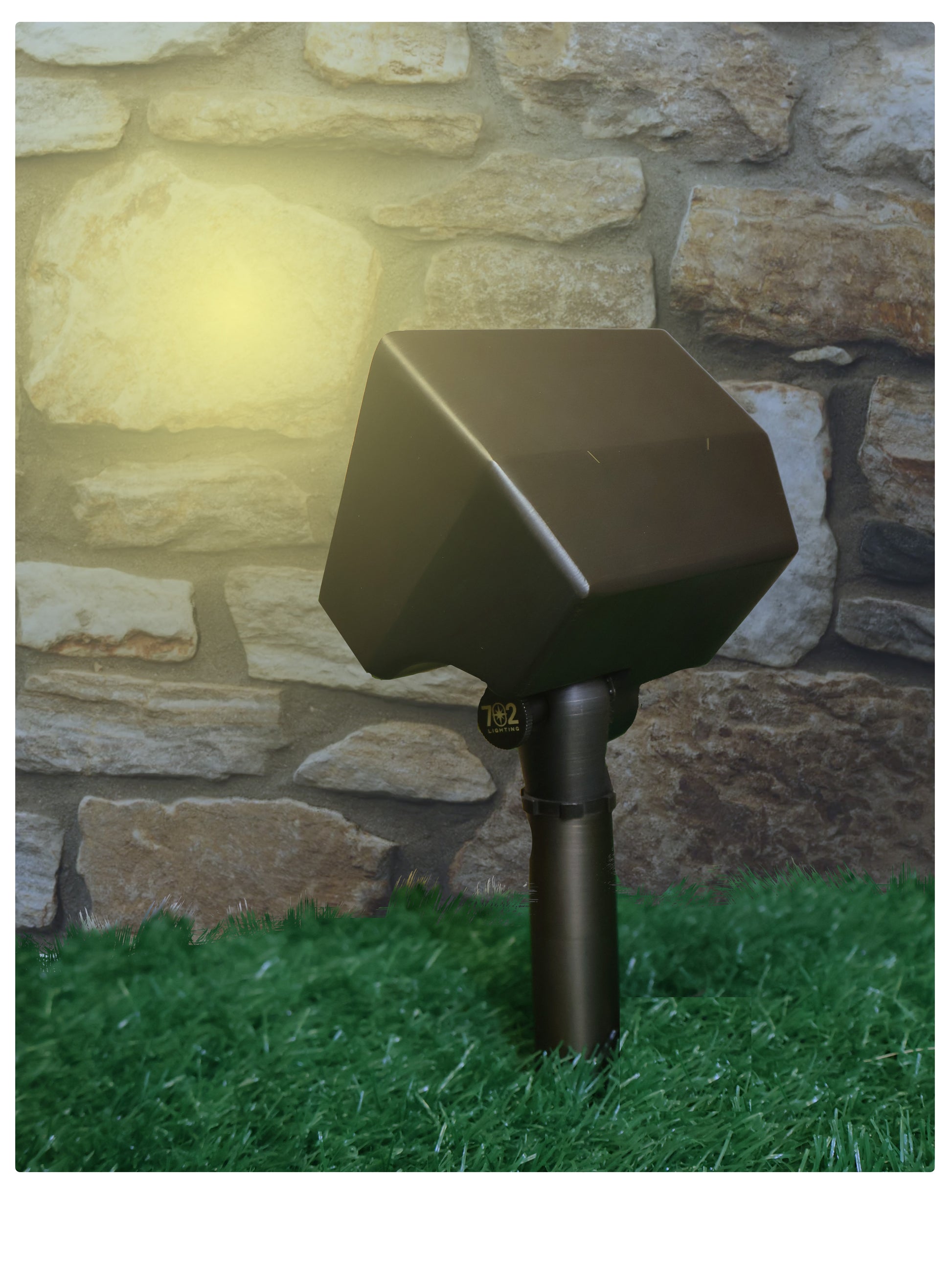

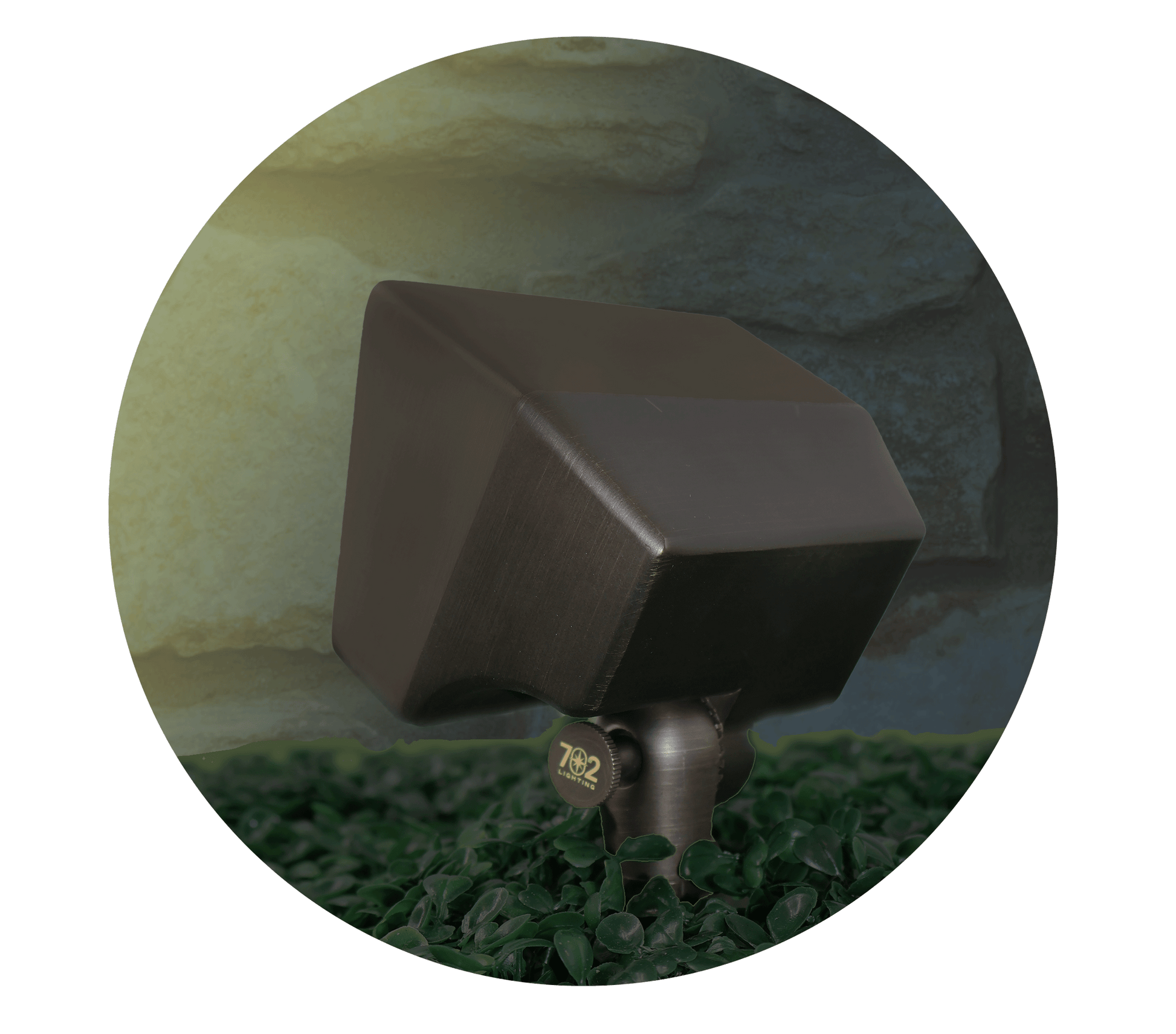

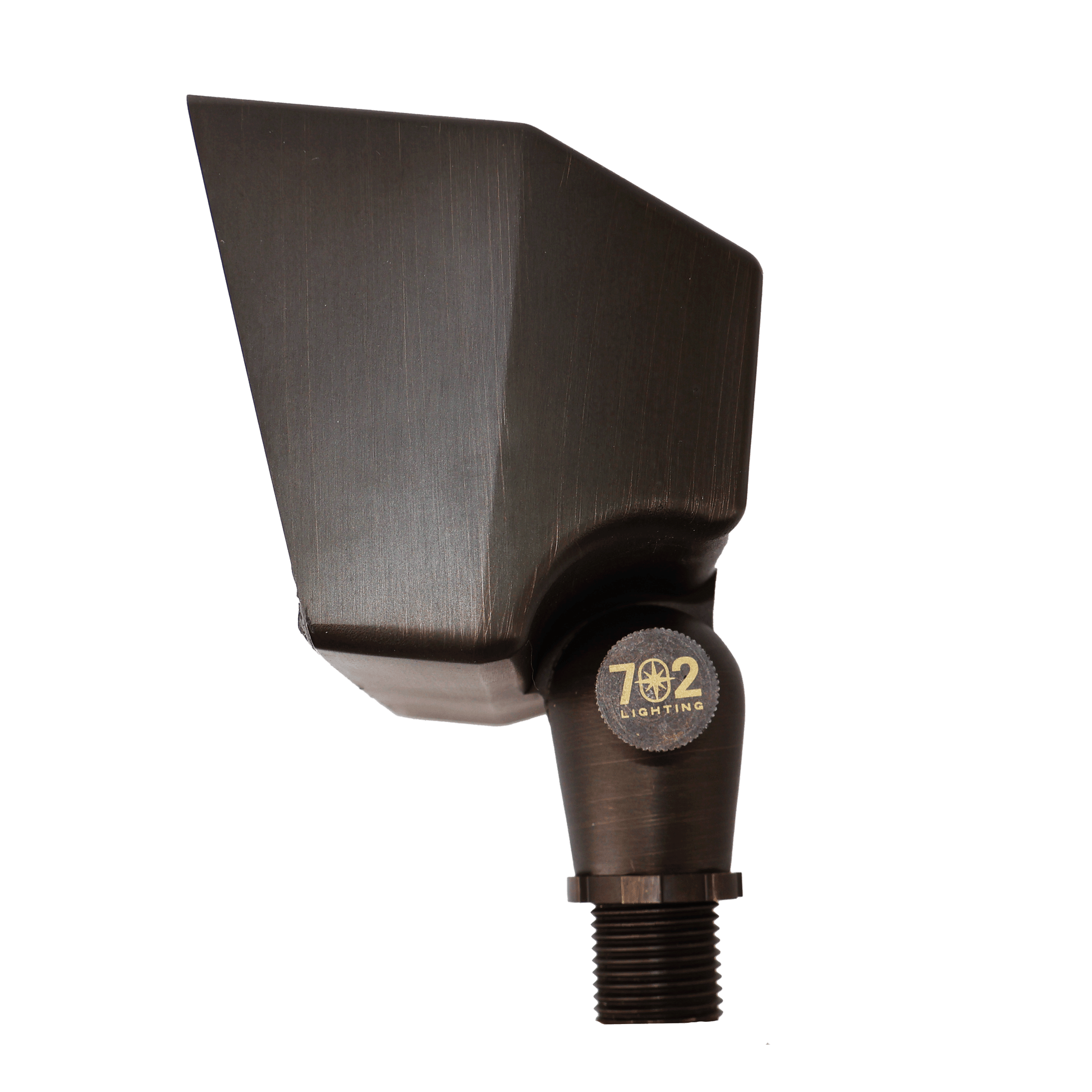

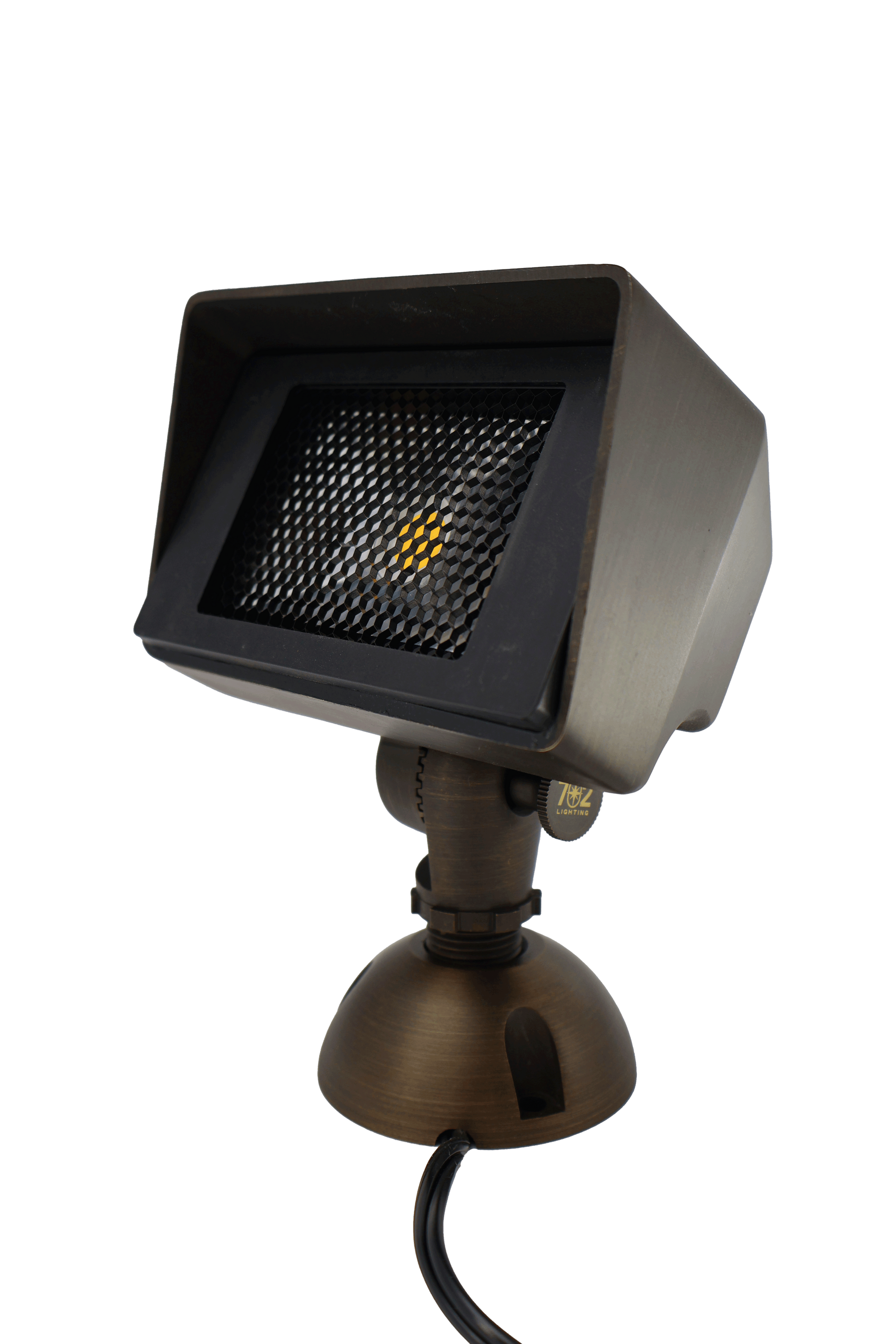

The Boy MSDPRO/CCT adjustable flood light and wall wash is made from solid die-cut brass. You can easily adjust wattage, lumen output and color temperature via patent-pending Magnetic Step Dimming (MSD) functionality. Using the provided magnetic-key, easily switch between four lumen outputs: 200lm, 400lm, 600lm, or 800lm and two color temperatures: 2700K or 3000K. The Boy Flood/Wall Wash is IP67 rated and includes an 8.75” ground stake. It also accepts 2 optional media (frost lens and/or hexcell louver).
Fixture comes preset to 6.5W, 3000Km 600lm
SKU: 702-FLOOD-MSDPRO-THEBOY-2700/3000-BS
Product Details:
- Watts: 2W, 4W, 6.5W, or 8.5W
- Volt Amps: 3.8VA, 6.6VA, 9.6VA, 12.5VA
- Color Temperature: 2700K/3000K Adjustable
- Operating Range: 9-15 VAC
- Lumens: 200/400/600/800 lm
- CRI: 80+
- Lamp Life: 50,000 hours
- Finish: Antique Brass

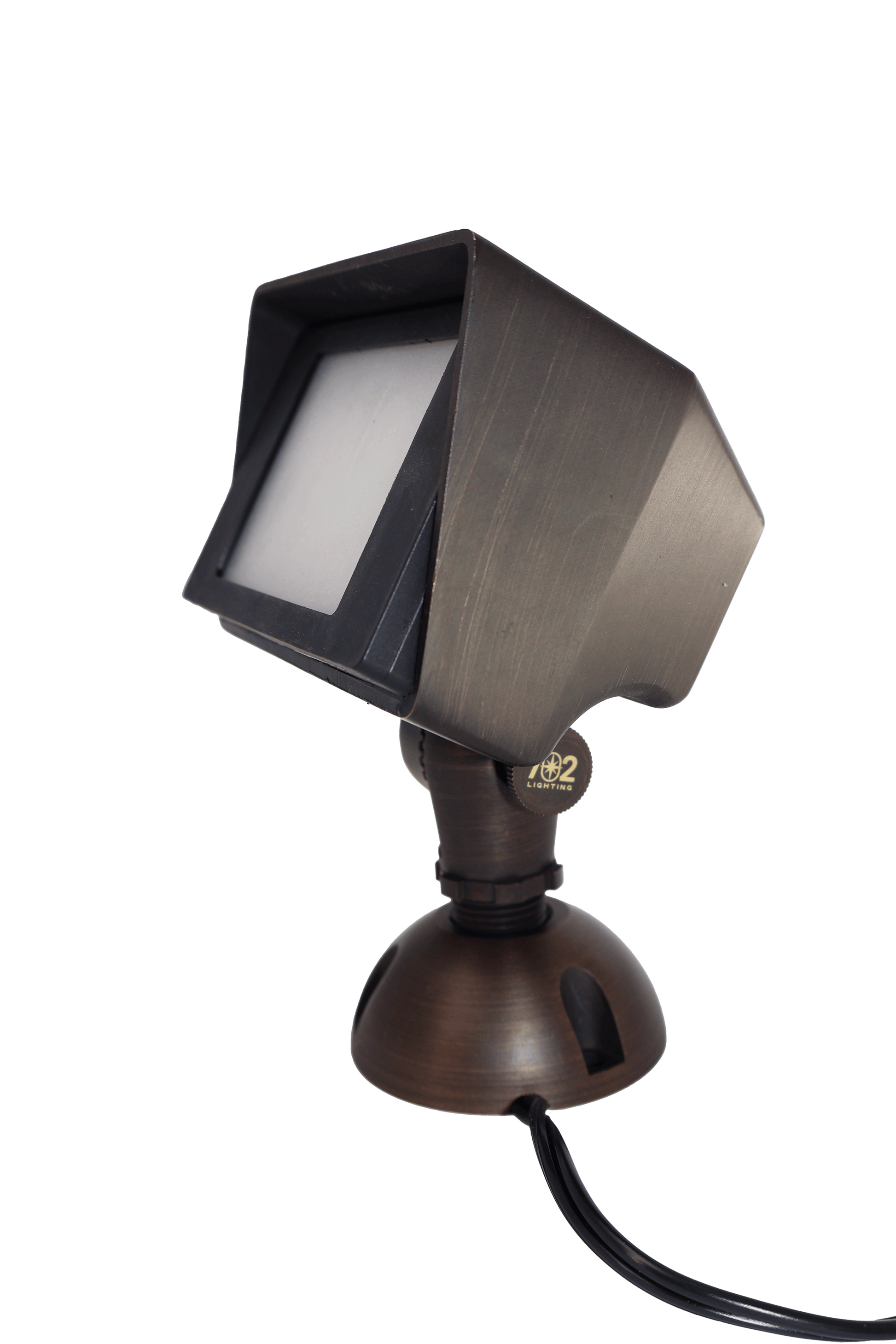

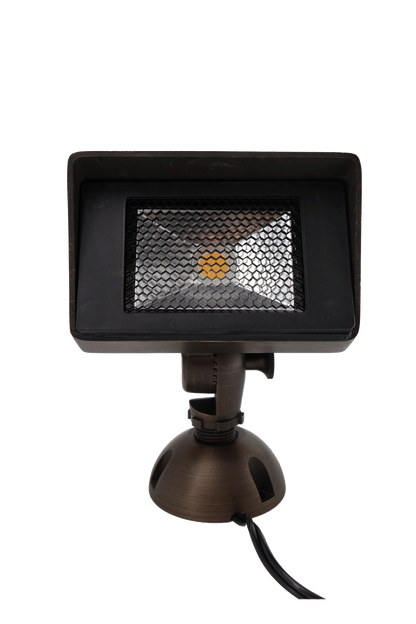

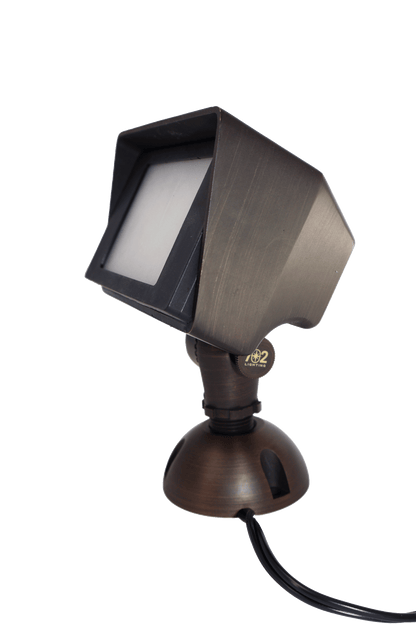

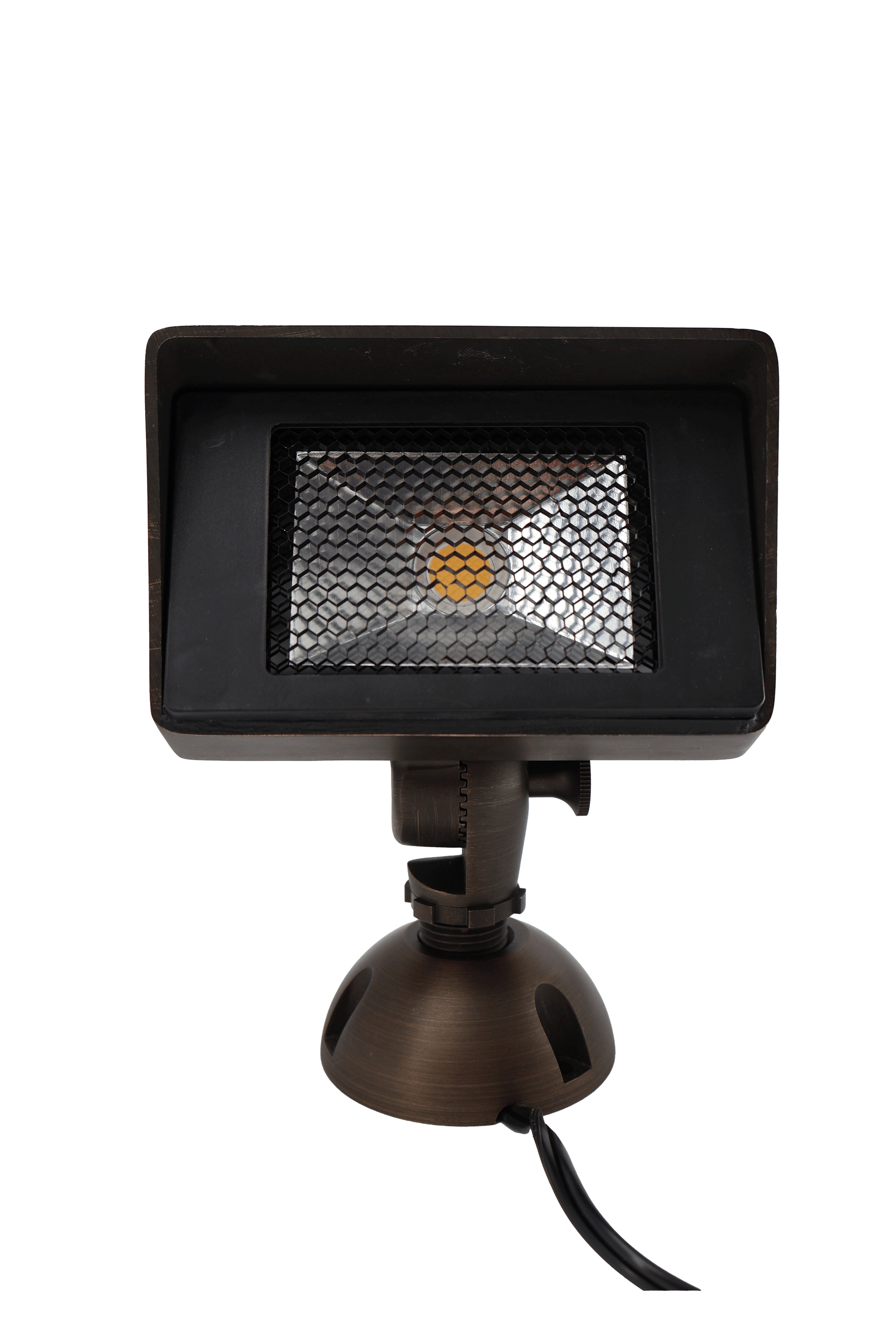

- Accessories: Magnetic Frost Lens or Magnetic Hexcell Louver
More Product Information
-
Part number for ordering:
FLOOD-MSDPRO-THEBOY-2700/3000-BS
-
Warranty:
10 YearsDimensions • Weight
4.8" L x 4.59" H • 3 lbs
-
Includes:
1 MSDPRO/CCT Flood Light
1 MSDPRO Magnetic Key
1 Ground Stake (8.75")
4.9' Lead Wire
-
-
-

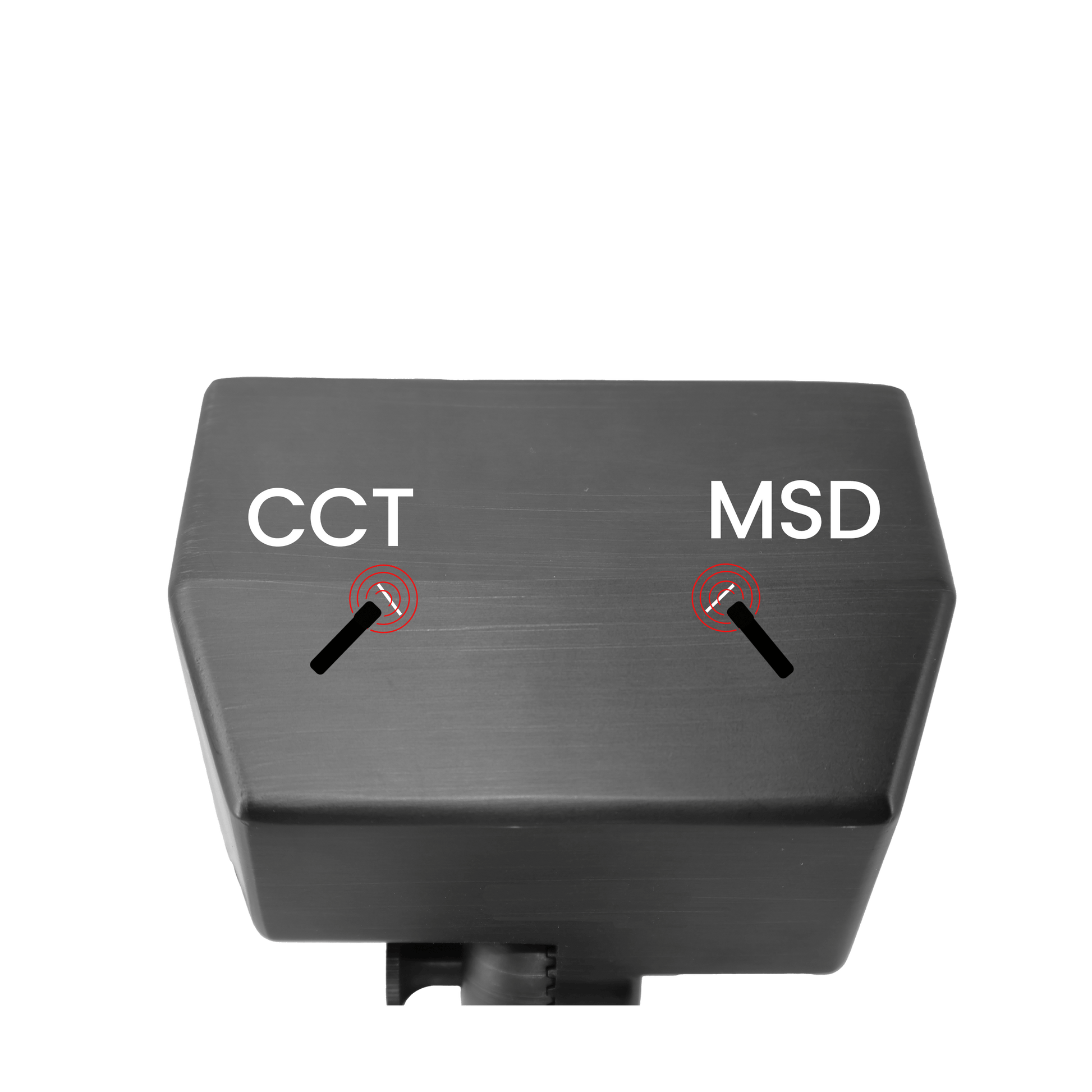

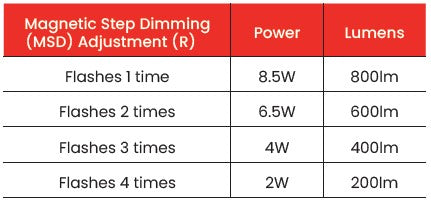

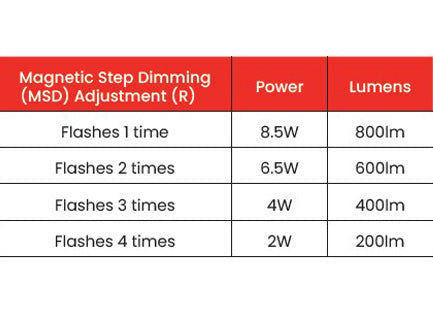

How to adjust MSD

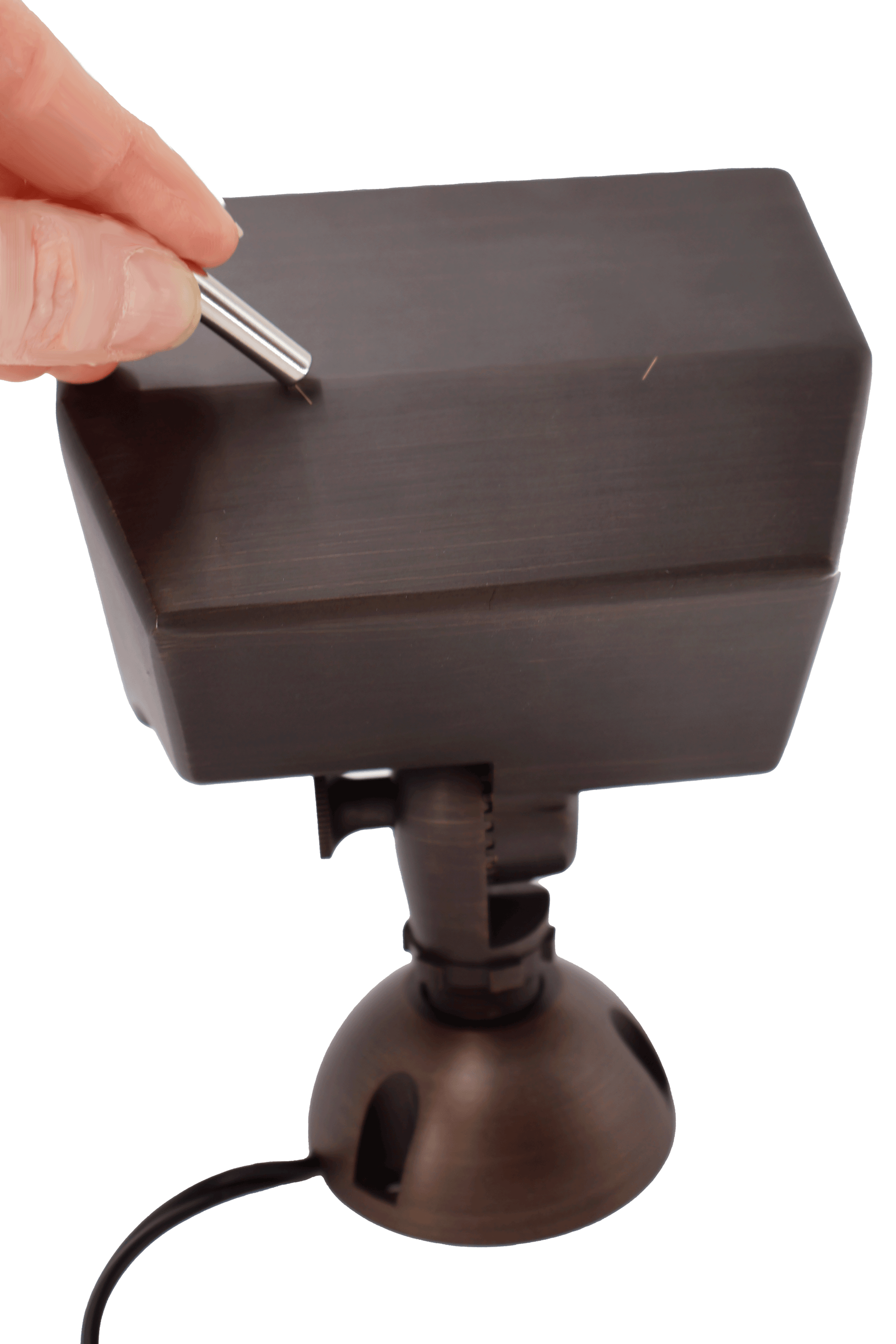

To adjust lumens/wattage, place magnet on top of the etched line on the right side (with the fixture facing away from you) and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5 seconds in between settings.

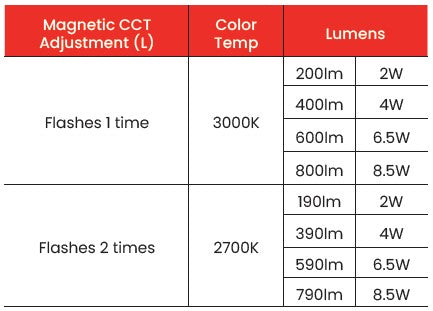

How to adjust the CCT
To adjust color temperature, place the magnet on top of the etched line on the LEFT side (with the fixture facing away from you) and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5 seconds in between settings.
