Large MSDPRO / CCT Adjustable Brass Accent • 23W, 4000/5000K • 20° Beam
Large MSDPRO / CCT Adjustable Brass Accent • 23W, 4000/5000K • 20° Beam
Large MSDPRO Accent Light
Large MSDPRO uplight/accent light made of solid die-cut brass. Adjust your wattage, lumen output and color temperature via patent-pending Magnetic Step Dimming (MSD) functionality. Using the provided magnetic-key, easily switch between three lumen outputs: 1200lm, 1400lm, or 1600lm, and two color temperatures: 4000K or 5000K. IP67 rated. Comes standard with a 4.9 foot lead wire, MSDPRO magnetic-key, 8.75" ground stake and a 10 year manufacturer warranty.
Default Settings Out of Box: 20W, 1400lm, 5000K
SKU: 702-UPLIGHT-MSDPRO-LARGE-4000/5000-20-BS
More Product Information
-
Part number for ordering:
702-UPLIGHT-MSDPRO-LARGE-4000/5000-20-BS
-
Warranty:
10 Years

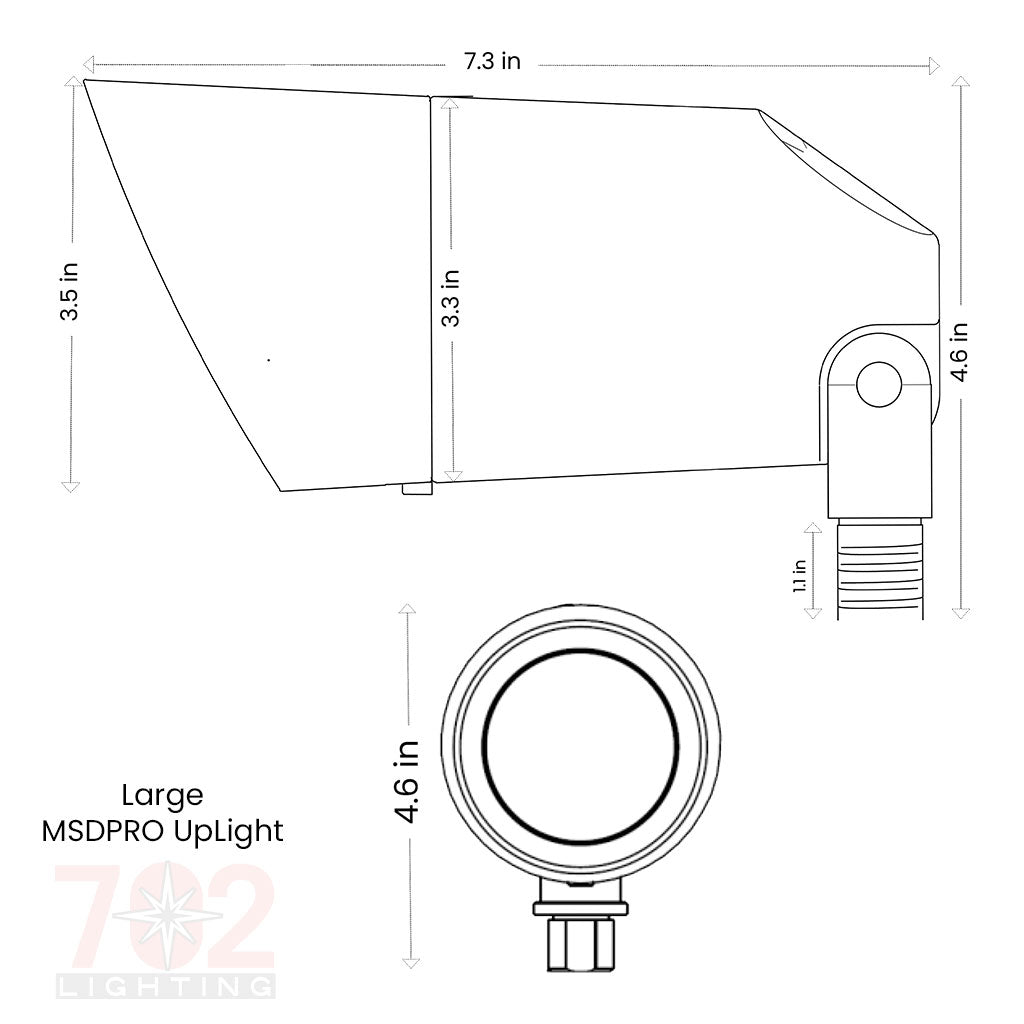

Dimensions • Weight
7.3" L x 4.6" H • 8 lbs
-
Includes:
1 Large MSDPRO/CCT Uplight
1 MSDPRO Magnetic Key
1 Ground Stake (8.75")
4.9' Lead Wire
-
How to use Magnet to change CCT
To adjust color temperature, place the magnet in the area just above the etched line on the LEFT side (with the fixture facing away from you) and hold for 1.5 seconds. Light will flash if successful.
To adjust again, repeat, pausing for 1.5 seconds in between settings. -
How to use Magentic Step Dimming to change your lamp wattage:
To adjust wattage, place the magnet in the area just above the etched line on the RIGHT side (with the fixture facing away from you)and hold for 1.5 seconds. Light will flash if successful.
To adjust again, repeat, pausing for 1.5
seconds in between settings. -
