702 Lighting

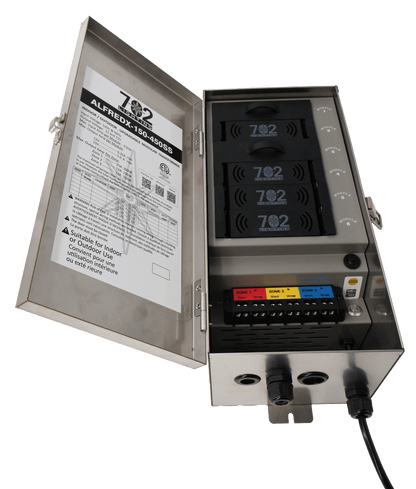

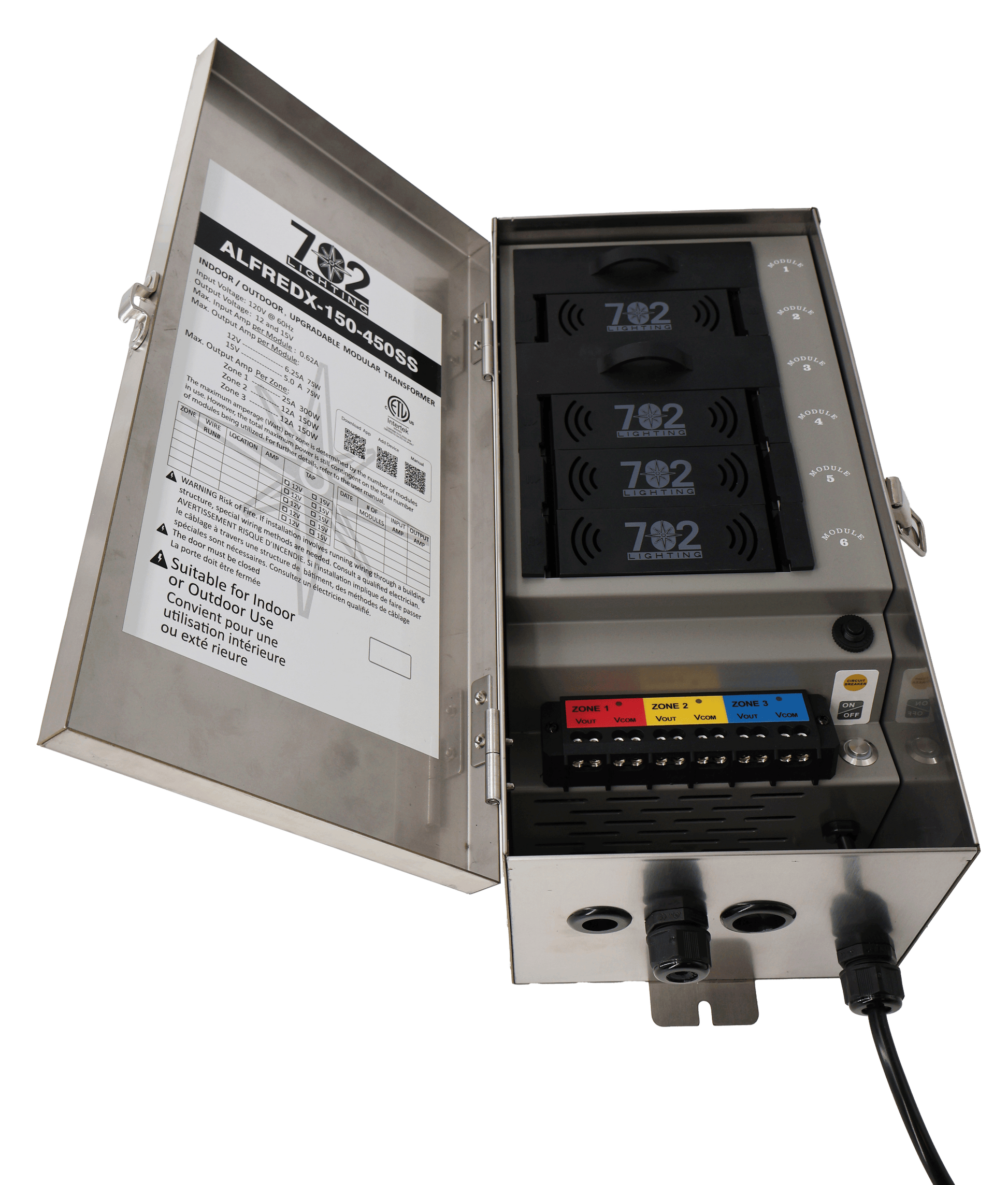

ALFREDX Upgradable Transformer • 150W-450W

ALFREDX Upgradable Transformer • 150W-450W

 • • COMING SOON, Q4 (Oct-Dec) • •

Introducing an ultimate game-changer in lighting power:

The ALFREDX - an Upgradable, Low Voltage Landscape Lighting Transformer

In App Voltage Swap - Voltage Transformer

With patented in-app voltage switching between 12V and 15V.  No moving wires!

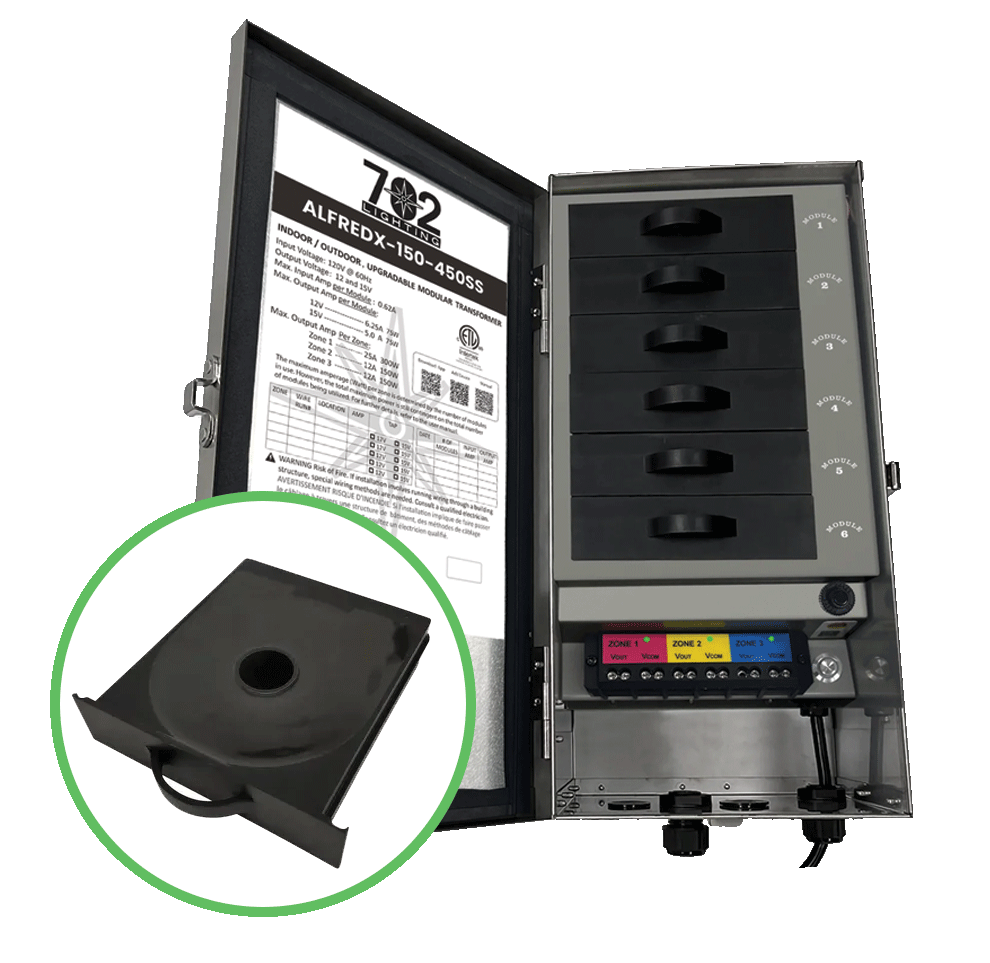

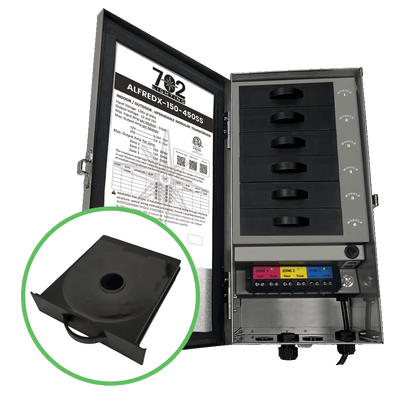

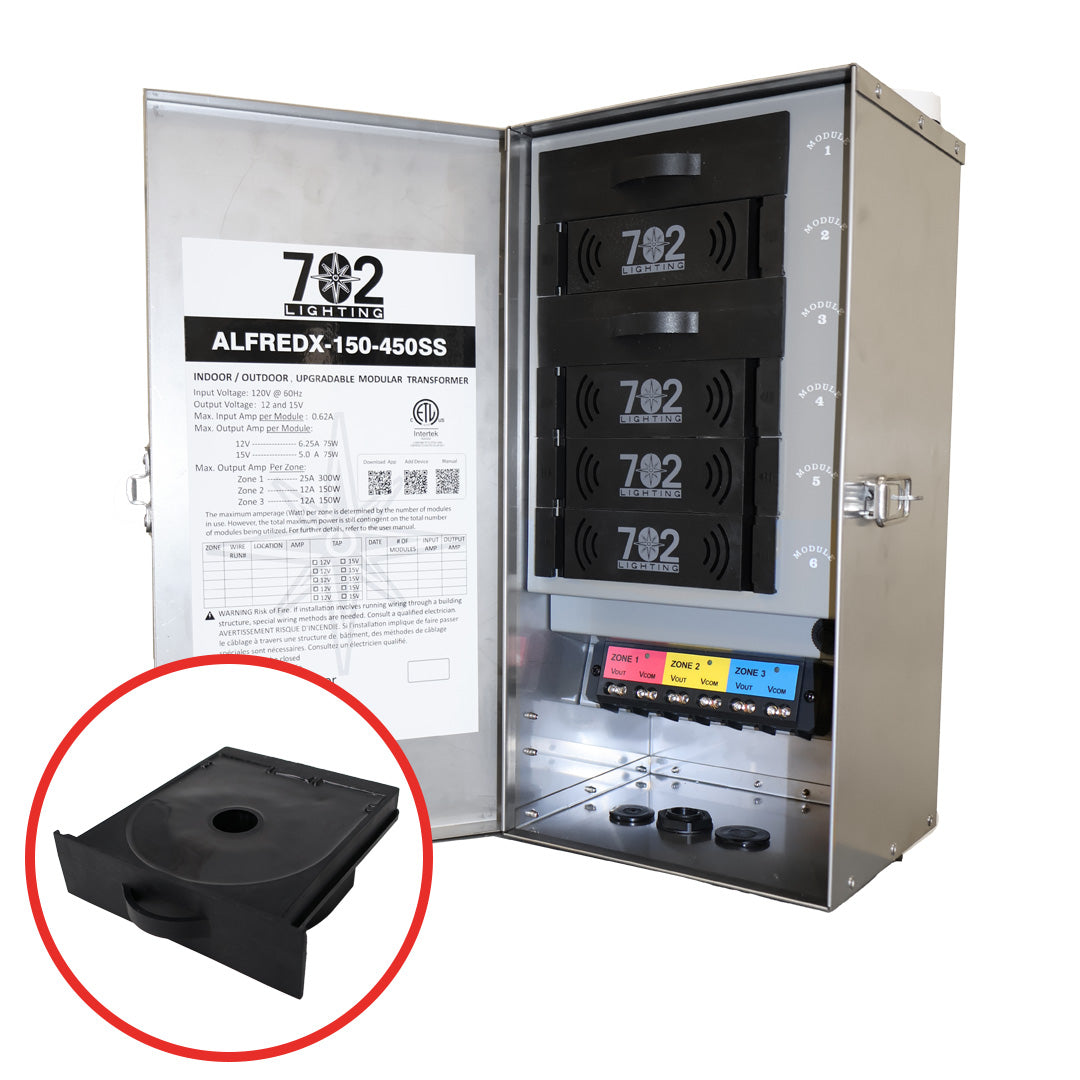

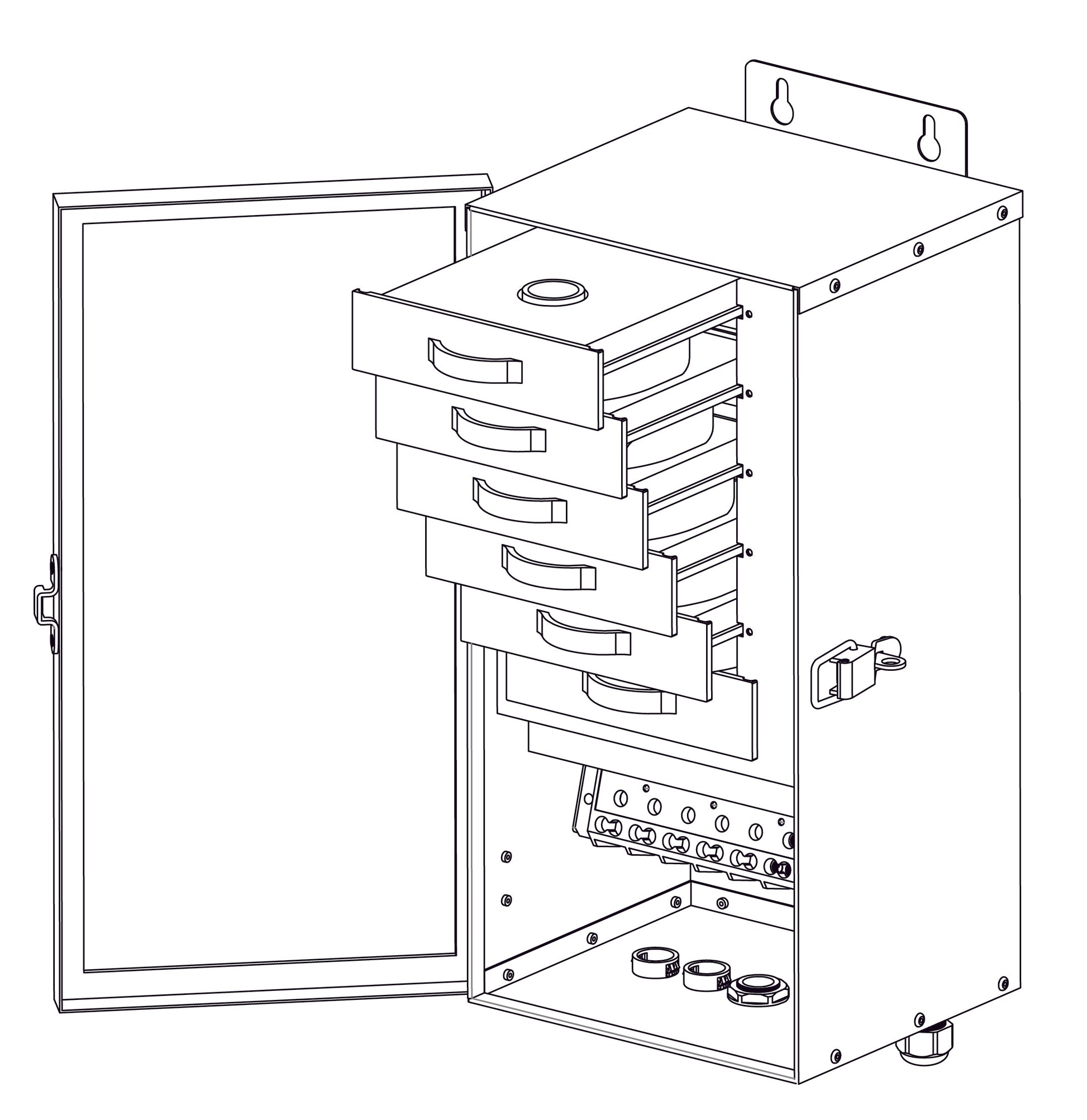

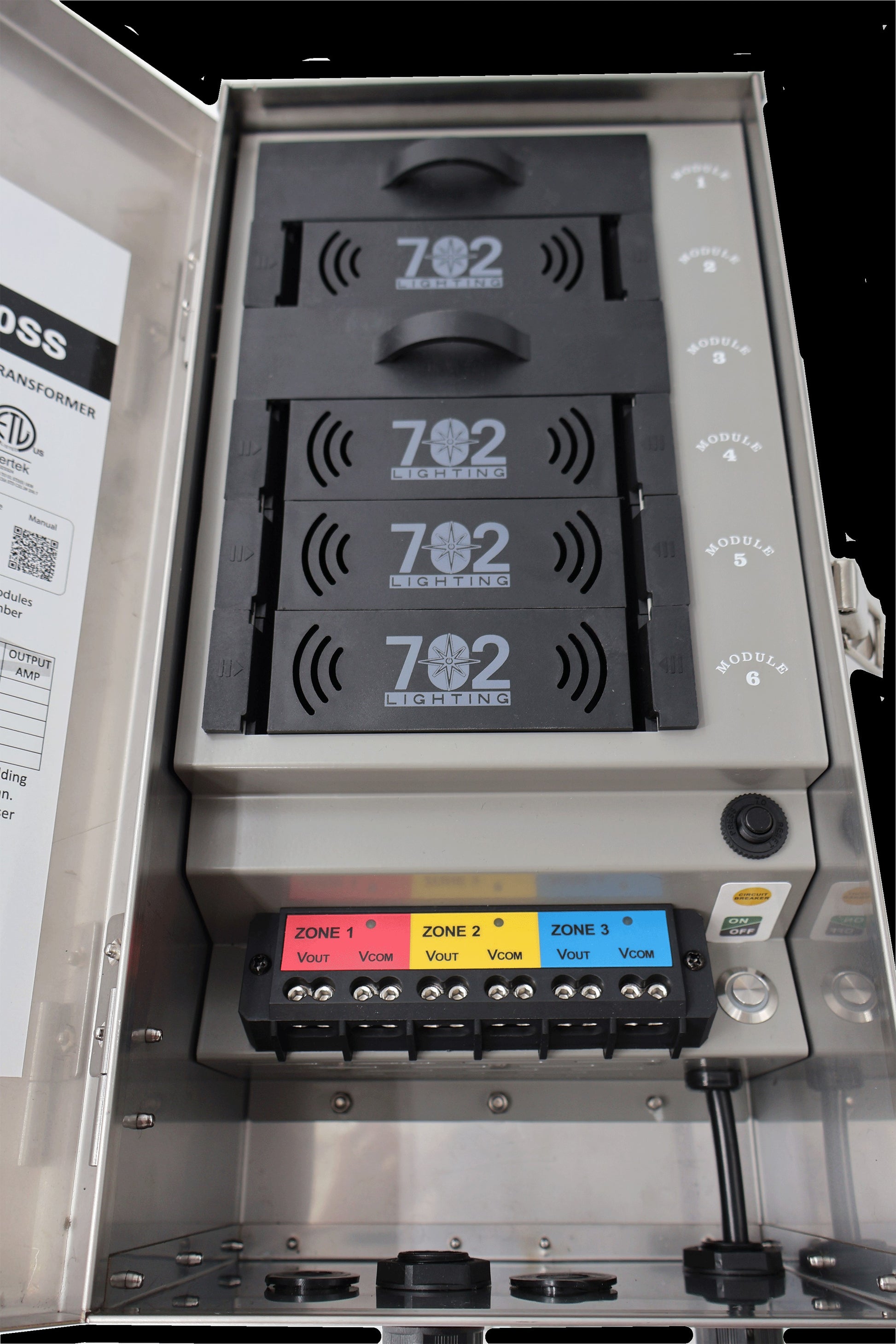

The ALFREDX comes with 2 x 75W cassettes (150W total) pre-installed, upgradable up to 450W, or 6 cassettes total. Includes Wi-Fi and Bluetooth connectivity and a free app, where you can swap voltage outputs between 12V and 15V, through patented technology. Using the app, also control up to three zones, set timers, and get input and output data readings from your power supply.

Limited on truck space and/or warehouse space? Don't worry about keeping a big selection of different transformers - with the ALFREDX power supply, you can install for small jobs that only need up to 150W, or larger jobs that could use up to 450W! Just add on 75W cassettes to up your transformer's power and ability! The ALFREDX grows WITH your projects!

  • Watts: Comes w/ 150W installed. Upgrade up to 450W.
  • Input Amps: 0.62A (per 75W cassette)
  • Output Amps: 12V --> 6.25A, 15V --> 5A (per 75W cassette)

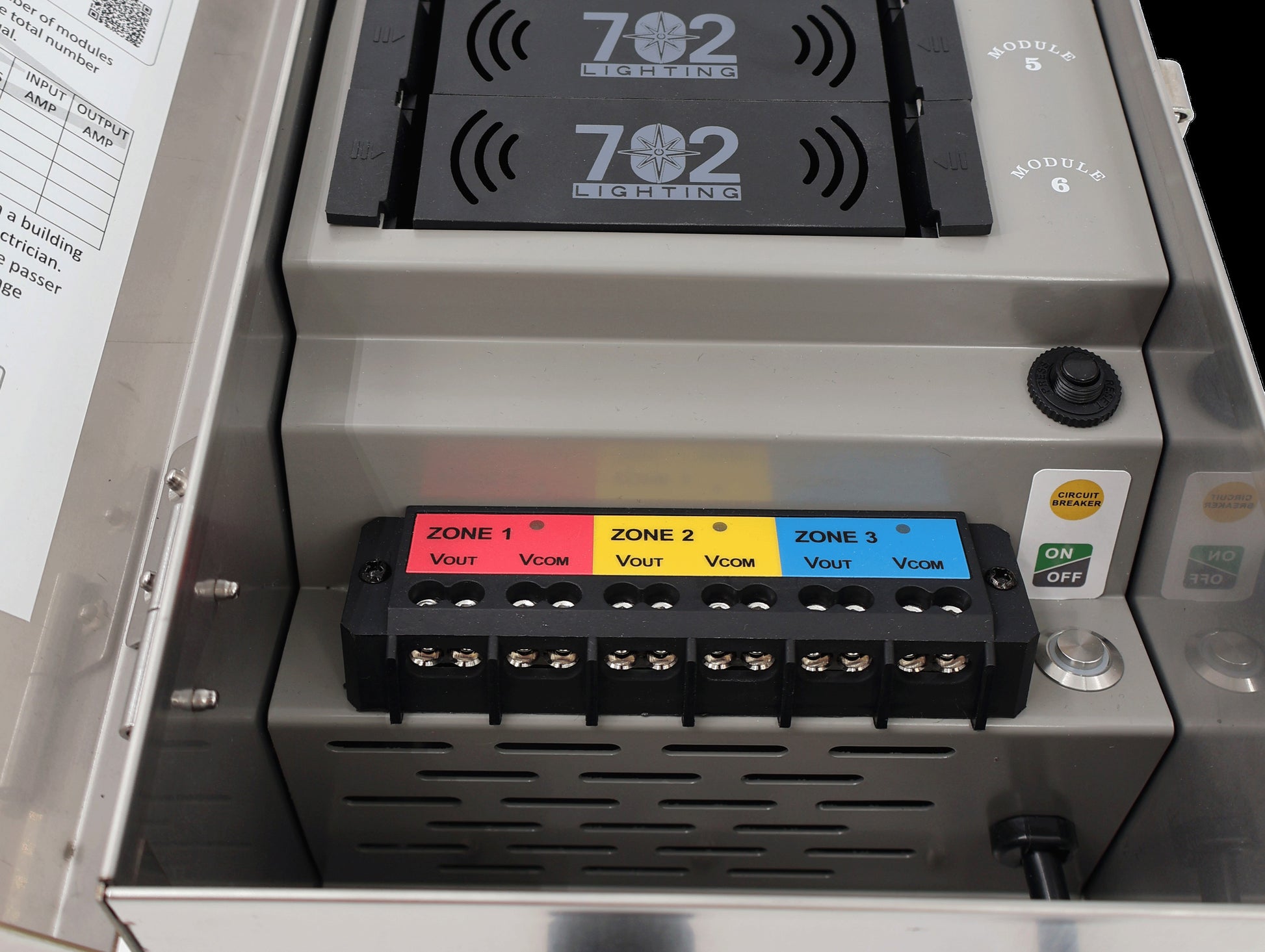

  • Zones: Up to 3
  • Operating Range: 100V-125V, 60hz
  • Output Voltage: 12V or 15V - Switchable in the App!
  • Wireless Features: Bluetooth & WiFi
  • Timer: Manual & Astronomical App Controlled
  • Finish: Stainless Steel
  • IP Rating: IP64 Weatherproof
  • App Provided Data: Voltage, Current, Power, and KWH
  • Weight: 21 lbs
View full details
  • Includes:

    1 - Low Voltage Transformer

    Part number for ordering:

    702-TRANS-ALFREDX-150-450SS

  • Warranty:
    5 Years Electrical, Limited Lifetime on Cassettes

    Dimensions:

    ALFRED 150W & 300W

    5.9" W x 12.4" H x 5.7" D

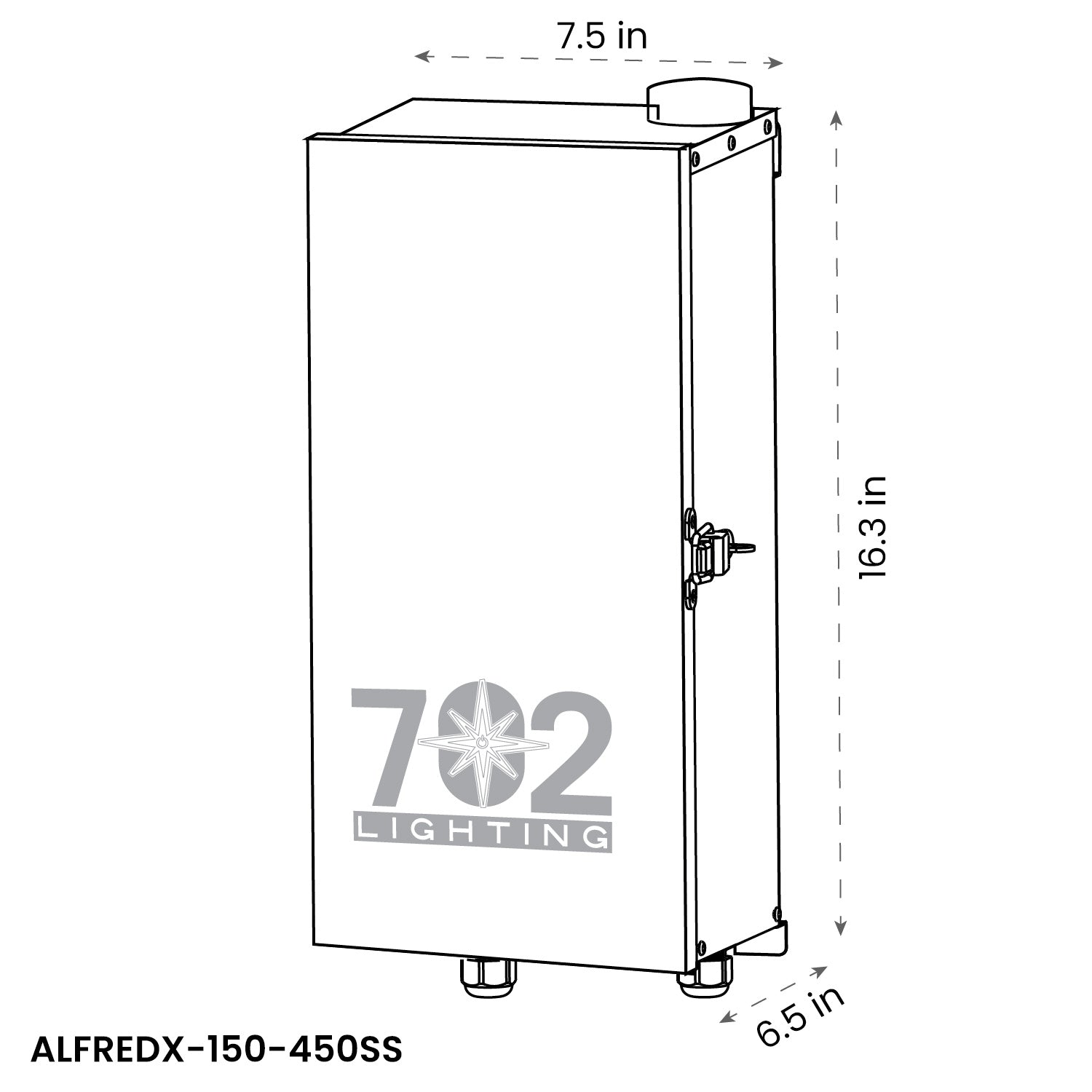

    ALFREDX 150-450W

    7.5" W x 16.3" H x 6.5" D

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet
